Specifications
TITLE
3705FB
GVWR
16,500 lbs
DRY WEIGHT
13,411 lbs
HITCH WEIGHT
2,985 lbs
CARGO CAPACITY
3,041 lbs
WIDTH
8'-0"
HEIGHT
13'-3"
LENGTH
44'-1/2"
SQFT
418'
SLEEP CAPACITY
3-4
AXLES
2 x 7,000 lbs
FRESH TANK
65 gal
GREY TANK
84 gal
BLACK TANK
84 gal
WATER HEATER
0 gal
FURNACE
35,000 BTU
AIR CONDITIONER
15,000 BTU
AIR CONDITIONER2
15,000 BTU
LP TANK CAPACITY
2 x 30 LBS
REFRIGERATOR
20 Cu Ft/110/Res.
CONVERTOR
80 AMP
SHORE POWER
50 AMP
NUMBER OF SLIDES
3
MAIN SLIDE HEIGHT
7'-2"
BEDROOM HEIGHT
6'-4"
AWNING LENGTH
18'
COOK TOP
3 Burner
TRADITIONAL OVEN
Yes
CONVECTION OVEN
No
GENERATOR PREP
Optional
BED SIZE
King
Highlights
Features
- Double Layer Azdel Composite Panels
- TPO Roofing Material with 4” Aluminum Wrapped Edge
- 12” Powder Coated Steal I-Beam Frame Front to Rear
- Innovative Storage Design with three points of access, providing easy loading and unloading, and entertainment prep, Insulated slam style cargo doors with magnetic hold backs.
- Maximized Storage Capacity on a Drop Frame
- Double 7,000lb Dexter EZ Lube Axles
- Dexter NEV-R-ADJUST Brake System Providing 50% Better Stopping Power
- MORryde 3000 Suspension with Leaf Springs, Wet Bolt Kit, and Shock Absorbers
- 2” Thick Sidewall with Aluminum Super Structure and High-Density Block Foam Insulation
- Triple H Aluminum Tube Structure for Added Strength and Durability in Sidewalls and Slide outs
- Triple Insulated Floor – Laminated Floors, Radiant Foil, Fiberglass, and Block Foam Insulation
- Upgraded Rota Flex Pin Box to Help Prevent Against Coach Chucking
- 12V Power Cord Reel and a 50 AMP Detachable marine power cord
- Solid entry step with large entry assist grab handle
- Extended hitch pin
- Rear ladder
- City water hook up with high pressure fresh tank fill and water filter
- Exterior shower with hot & cold water
- Satellite and antenna connections
- Universal docking station with all hookups, dump valves, flush, cable/sat, shower and winterization in one convenient and concealed compartment.
- 80 AMP/12V DC Power converter
- 110V Exterior electrical receptacles
- Battery disconnect
- Exterior speakers
- Stainless Steel Appliance Package: 21cu ft Residential Refer, 30” Microwave, 3.7cu ft Residential Oven
- All Floorplans Built with Full-Size Pantry and Soft Close Cabinet Doors and Drawers
- Designer Island Front with Built-In Single Basin Farm Style Sink, Roll-Up Sink Cover, And Residential Sprayer Faucet
- Dual Whisper Quiet A/C System Provides 30,000 BTUs of Cooling Power
- Independent Thermostats Per A/C for Ease of Control
- Laminated Main Deck and Upper Deck That Provides Better Insulation Factor and Construction Durability
- High End Woven Flooring in All Dinette Slide outs which make it easy to maintain and clean, and are pet friendly and Anti-Microbial
- King Bed Standard with Under Bed Storage
- Every Floorplan equipped with Washer and Dryer Prep Closet
- Built-In Fascia Nightstands with Easily Accessible Receps
- Tri-Fold Sleeper Sofa and Power Theater Seating with Heat and Massage
- Entertainment Center with 55” Big Screen TV and Built-In 40” Electric Fireplace
- Super USB Charging Ports and Wireless Charging Stations Throughout
- Hydraulic operating system with manual override for slide room
- Multi-seal slide room with one-piece weather-proof floor pan
- All-in-one master control panel with tank monitors, slide and light switches
- Upgraded night shades throughout
- Ceiling fan
- High output entertainment system with DVD/Bluetooth HDMI
- Seamless Corrugated underbelly material
- Heated and Enclosed Underbelly
- 6-Point hydraulic landing gear and auto level system
- Color-coded Plumb-PLEX™ water lines with 10/25 year warranty
- 75 Gallon fresh water system tank
- 90 Gallon gray tank
- 45 Gallon black tank
- (2) 30#LP bottles
- 35,000 BTU Furnace
- Seamless one piece below floor heat duct
- G14-rated 16˝ tires with aluminum rims and leaf springs
- Upgraded rubberized suspension system
- 7,000 lb. industry leading axle with Easy-Lube™ hubs (all models)
- 2˝ x 12˝ Nev-R-Adjust brakes

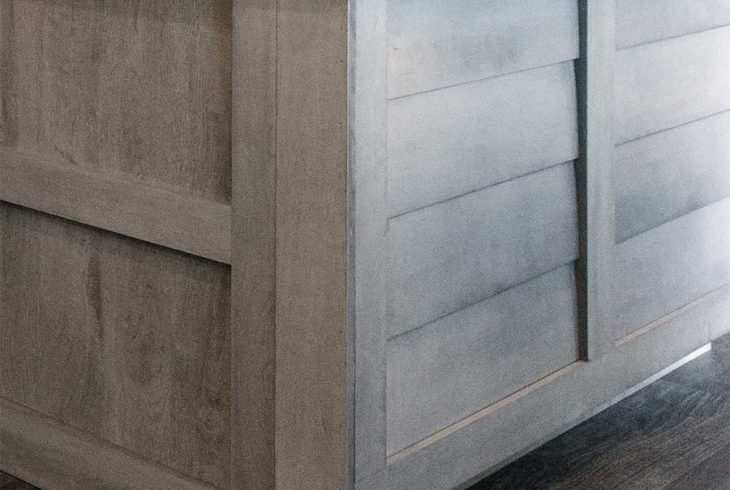

- Stained hardwood cabinetry and fascia
- All cabinet fronts are pre-drilled and screwed together allowing for no staples.
- Solid surface counter tops
- LED lighting throughout
- King size bed
- Walk-in wardrobe closet
- Stackable washer /dryer closet
- 6´4˝ Bedroom ceiling height
- Reading lights over the bed
- Porcelain toilet with foot flush
- Roof vent
- Heat and A/C duct
- Large medicine cabinet
- 6´4˝ Bath ceiling height
- One-piece fiberglass shower with luxury glass shower surround
- Smoke detectors
- Fire extinguisher
- LP gas & CO2 detector inside unit
- Break away switch
- All safety glass windows
- 120V GFI protected outlets
- Fire escape windows
Options
- 32” Bedroom TV
- Three speed, temperature control fan in bathroom with rain sensor
- Heat pump options (Ask dealer for details)
- Slide toppers – awnings
- Dual pane frameless windows
- 50AMP Automatic power cord reel
- Premium pin box
- Generator prep
- Solid stained hardwood interior cabinets with hidden hinges
- Hardwood slide fascia
- Dinette table with four chairs
- Solid surface counter tops
- Pull out drawers with full extension glides and solid wood bottoms
- 50/50 Stainless steel kitchen sink with residential faucet
- Residential over with 4 burner cook top
- 30˝ microwave
- 21 cu. ft. residential stainless steel refrigerator
- 40″ Electric fireplace
- 30K BTU Whisper Quiet A/C system
- 12 Gal. quick recovery DSI 110/12v water heater
- Fantastic fan w/rain sensor and wall mounted controls
- Washer/dryer prep
- Solid single piece fiberglass shower w/glass enclosure
- Cold crack resistant flooring
- Large LED TV
- Tri-fold sleeper sofa
- Power theater style seats
- Upgraded day/night roller shades
- LED interior lighting
- King bed

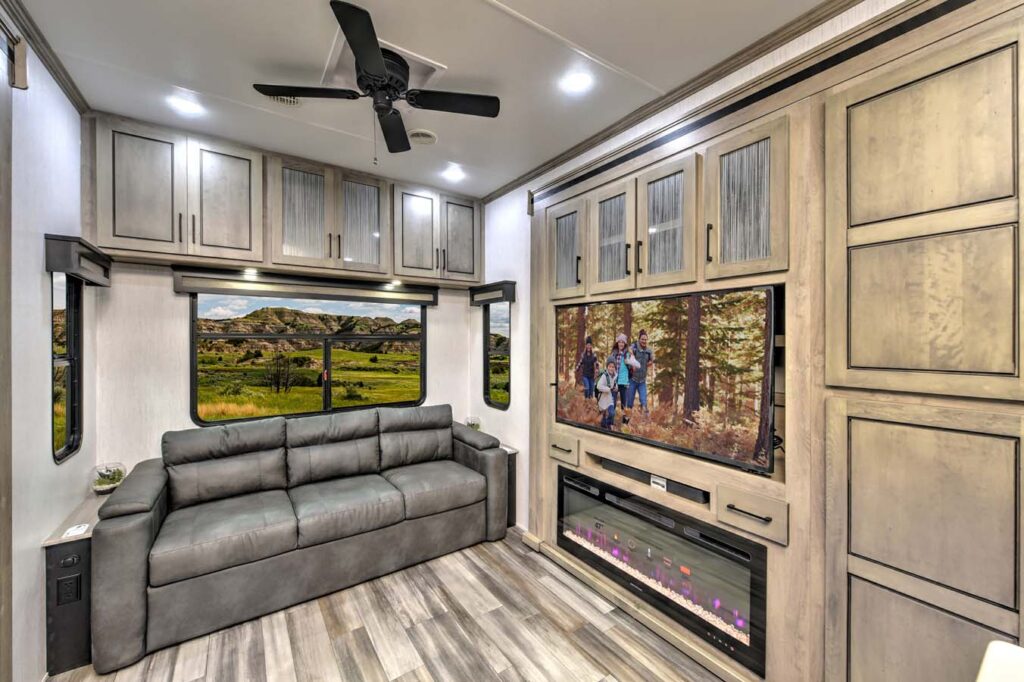

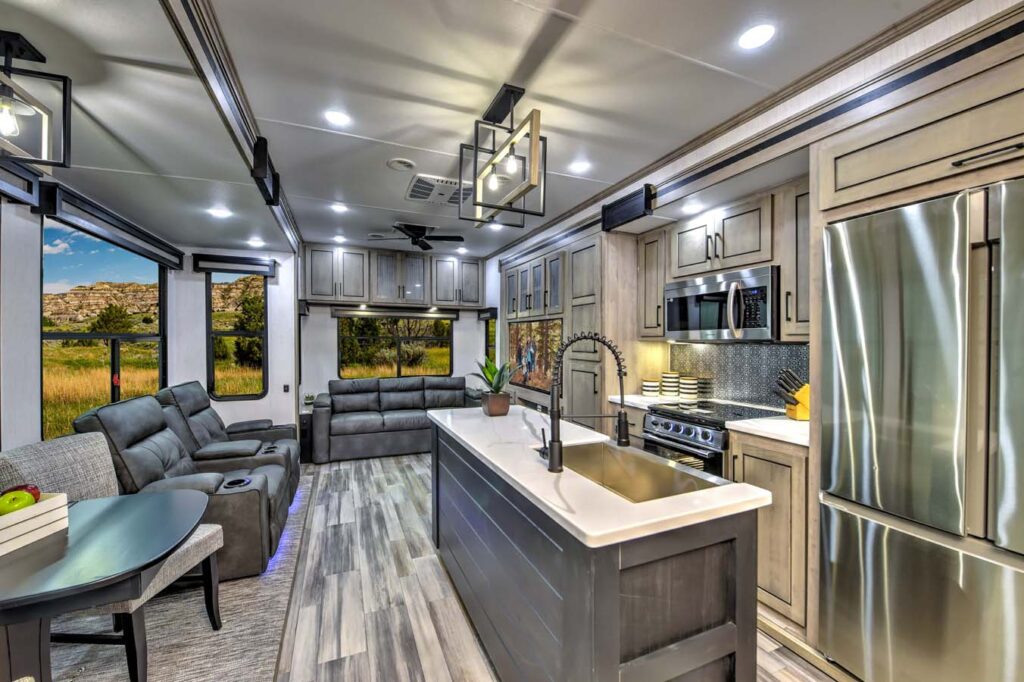

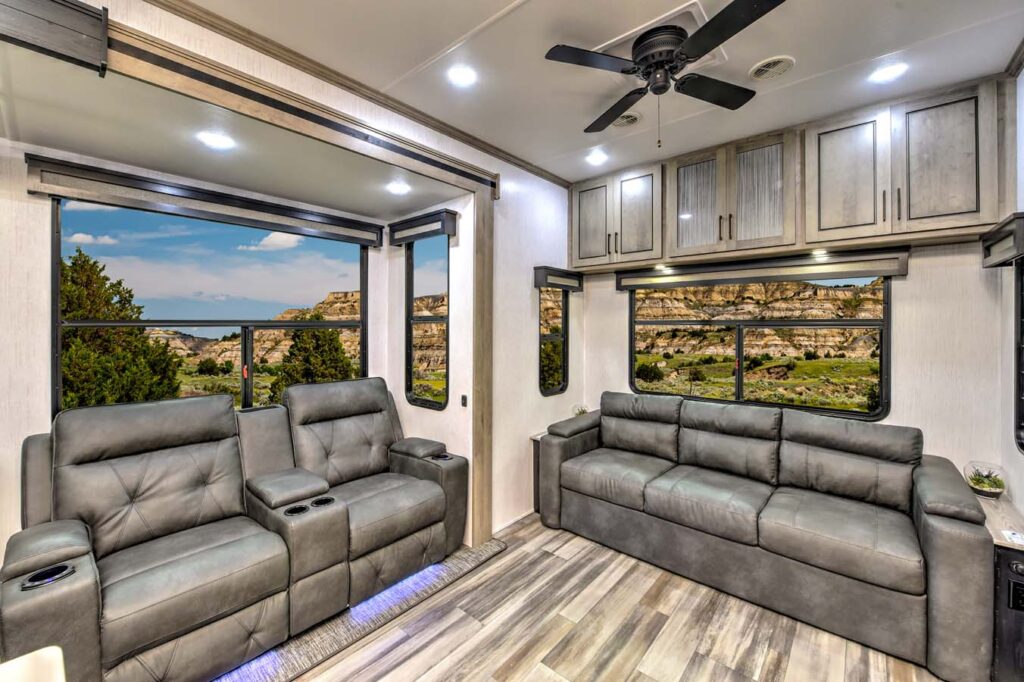

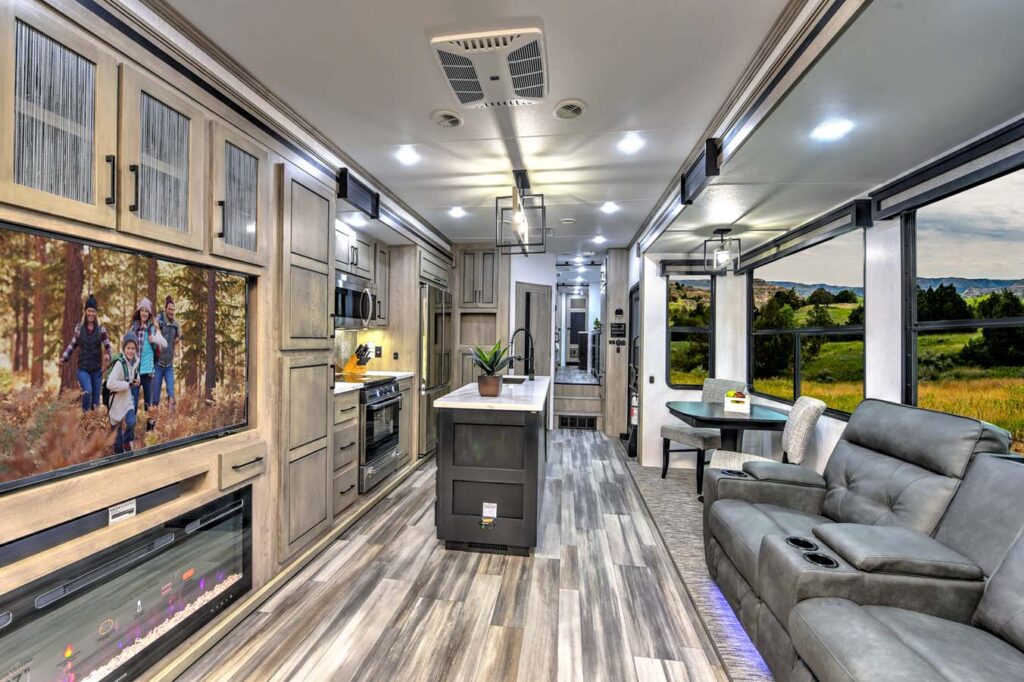

Interior Décor Shadow Stone
The Look

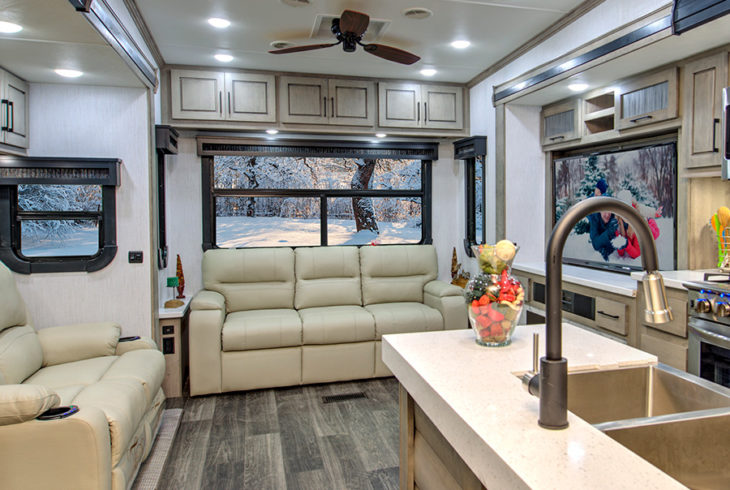

Interior Décor Country Creek
The Look
**Manufacturer's Suggested Retail Price (also referred to as "MSRP", "Base Price" or the "Starting At" price) excludes destination/delivery charges, taxes, title, license and registration fees, dealer fees and total of options fees. Check with your local dealer for pricing.
