Sundance Ultra-Lite Travel Trailers - Dealer Stock Only - West Coast & East Coast Production

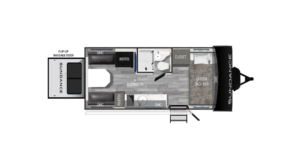

19HB
MSRP
$41,242**
Specifications
TITLE
19HB
GVWR
5,200 lbs
DRY WEIGHT
4,098 lbs
HITCH WEIGHT
560 lbs
CARGO CAPACITY
1,099 lbs
WIDTH
8'-3/8"
HEIGHT
10'-6"
LENGTH
22'-11"
SQFT
151'
SLEEP CAPACITY
3-4
AXLES
1 x 5,200 lbs
FRESH TANK
44 gal
GREY TANK
30 gal
BLACK TANK
30 gal
WATER HEATER
6 gal
FURNACE
20,000 BTU
AIR CONDITIONER
13,500 BTU
LP TANK CAPACITY
2 x 20 LBS
REFRIGERATOR
10.7 Cu Ft/12V/Res.
CONVERTOR
55 AMP
SHORE POWER
30 AMP
NUMBER OF SLIDES
0
BEDROOM HEIGHT
6'-8-3/8"
AWNING LENGTH
14'
COOK TOP
2 Burner
TRADITIONAL OVEN
Yes
CONVECTION OVEN
No
BED SIZE
Queen
Highlights

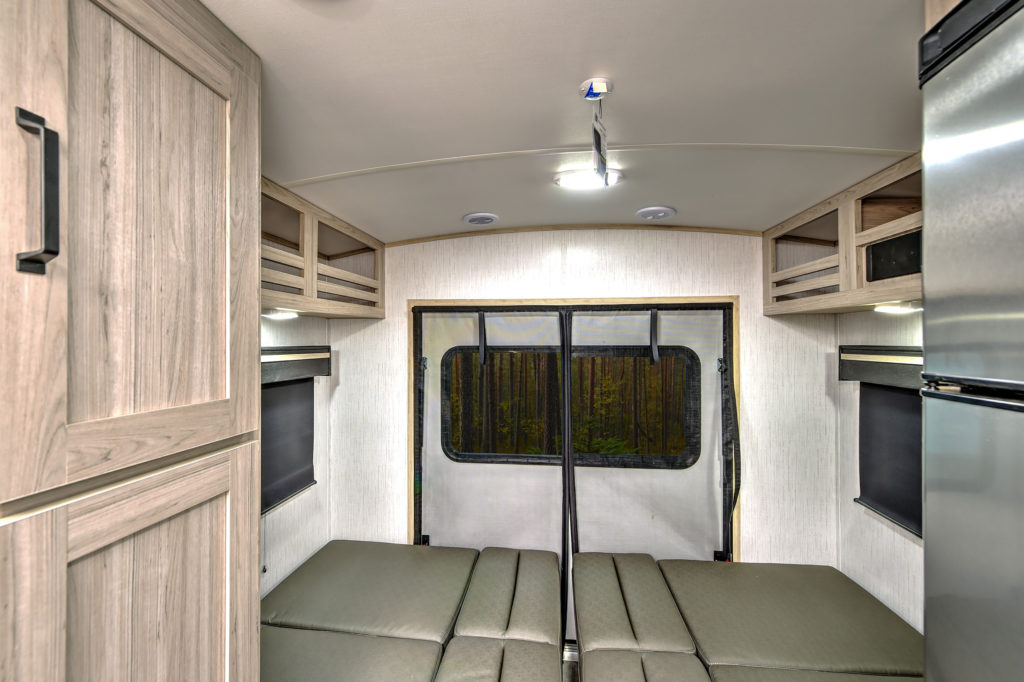

Back Hatch Door
Screen included on hatch entrance
Dinette table is free standing with easy storage under the TV and use anywhere
Features
- Azdel laminated sidewalls with half the weight of wood yet more durable and easy on the environment. Wether and temperature resistant. Azdel acts as a sound barrier while providing good insulation value.
- Back wall Hatch door fully opens to store bikes, kayaks, etc. 2 tie downs on the floor.
- Screen included on hatch entrance
- Colossal Storage – Exterior pass thru storage compartment with motion LED lighting provides you ample space to take everything you need
- Griddle in all outside kitchens with metal countertops. More versatile than a two-burner stove
- Automotive painted and stylish front cap
- Tire pressure monitoring prep allowing for simple customer upgrades
- Slam Latch Baggage Doors
- Aluminum Triple Entry Solid Steps
- Large Assist Entry Handlebars
- Outside spray port with hose & sprayer
- Black tank flush
- TV Antenna and cable hookup
- Electric awning with LED light
- Detachable power cord
- Privacy roller shades on all windows with a clean design
- Dinette table is free standing with easy storage under the TV and use anywhere.
- Roll over dinette to make into a bed
- 6’9” vaulted ceilings allowing for the feeling of more space
- Dream dinette and fireplace (most floor plans) providing you all the comforts in your home
- Woven flooring and flush floors in all slide outs making it family and dog friendly
- 10 Cu ft 12-volt refrigerator perfect for holding everything you need for the family barbecue
- Pressed counter tops
- 30″ Main Entry Door w/Friction Doors
- 13.5K BTU dual ducted AC
- Residential Style Furniture with a Tri-Fold sofa
- LED interior Lighting
- Spring Loaded Hidden Hinge Cabinets
- Tinted safety glass windows
- Upgraded mattress with comforter
- Slide out TV that rotates all the way around
- Painted Fiberglass Front Cap with LED Lights
- 5/8 Tongue & Groove Plywood floors
- Plywood under all beds and dinette seating
- Walkable aluminum trussed barrel roof with 3/8” decking wrapped in TPO
- Rack & Pinion Power Slide out supported by frame w/manual override
- Rack & Pinion Power Slide out supported by frame w/manual override
- Sealed 7-layer plywood slide out floor
- Black Tank Flush
- Dual Ducted A/C
- 6 Gallon Gas/Electric DSI water heater
- High output furnace
- Industry Leading Axles with E-Z Lube hubs
- Torsion axles with 15 inch D-rated off road tires
- 12 Volt refrigerator (East)
- 8 Cu Ft Gas/Electric refrigerator (West)
- 8 Cu Ft Gas/Electric refrigerator (West)
- Flush Mount Range with Glass Top
- Roller Shades

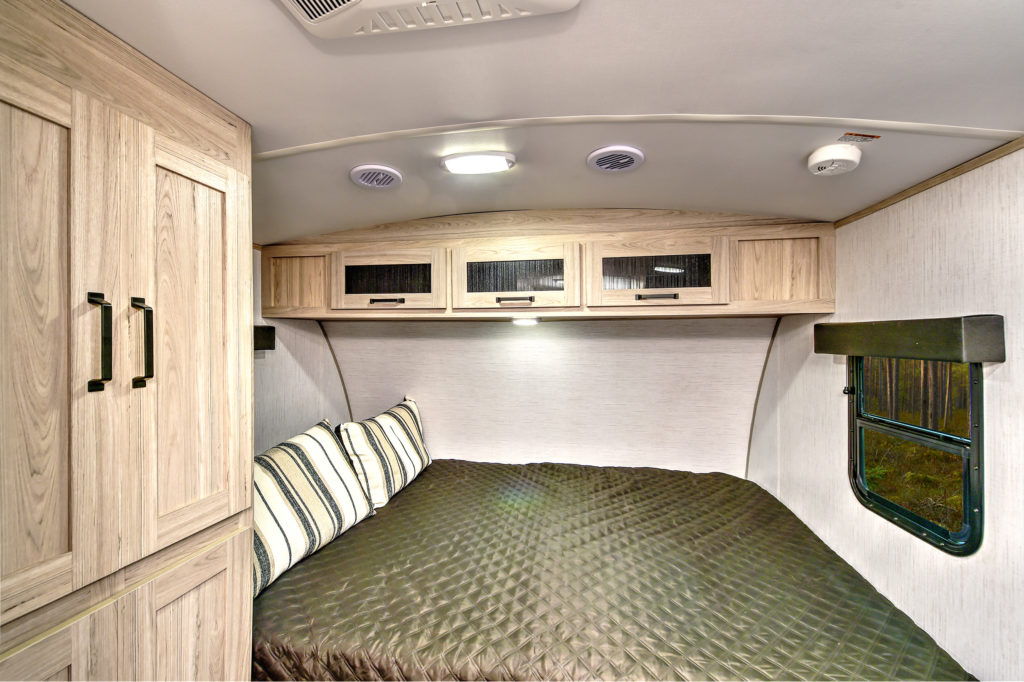

- Full 60”X80” Queen Bed with comforter
- Hanging Storage and Under Bed Storage
- USB Charging Ports
- Keyed alike- One unique key for all your locks
- Back-up Camera Prep
- Spare tire and carrier
- Solar Prep Comes Standard (option to upgrade to Sol 190 or Sol 380
Options
- 15k A/C
- 50 AMP Service
- Power Tongue Jack
- 39” LED TV
- 2nd A/C in Bedroom
- Solar - Upgrade to Sol 190 or Sol 380

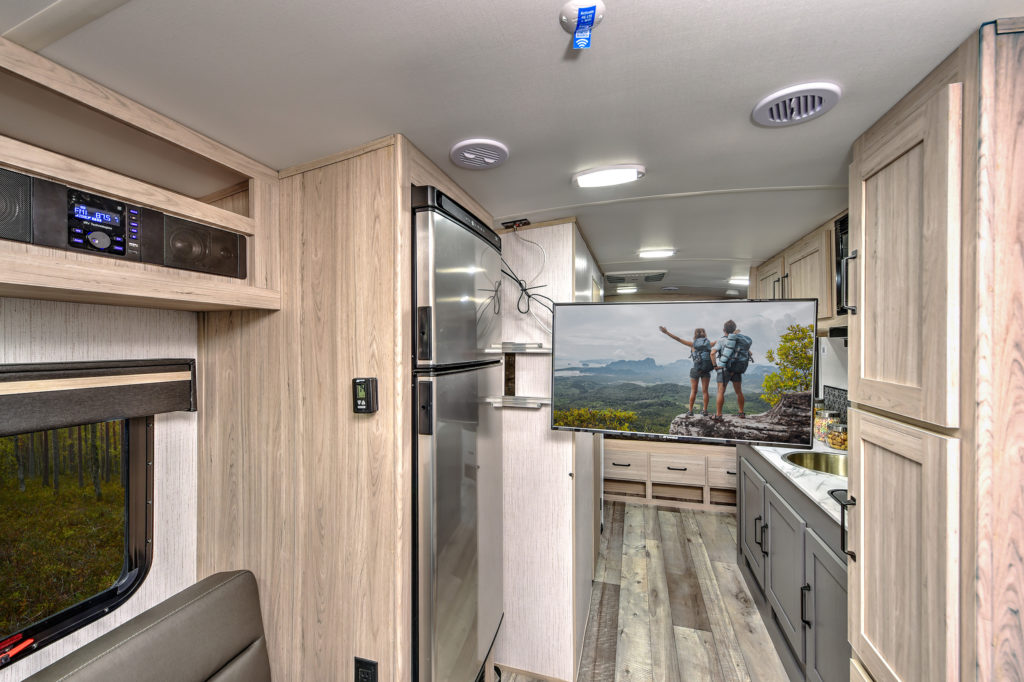

Interior Décor Urban Loft
The Look
**Manufacturer's Suggested Retail Price (also referred to as "MSRP", "Base Price" or the "Starting At" price) excludes destination/delivery charges, taxes, title, license and registration fees, dealer fees and total of options fees. Check with your local dealer for pricing.
