Specifications

TITLE RG28
GVWR 9000
DRY WEIGHT 6558
HITCH WEIGHT 1142
CARGO CAPACITY 2,410 lbs
WIDTH 8'-1/2"
HEIGHT 11'-4"
LENGTH 33'-8"
SQFT 267'
SLEEP CAPACITY 5-6
AXLES 2 x 4400
FRESH TANK 41 gal
GREY TANK 40 gal
BLACK TANK 40 gal
WATER HEATER 6 gal
FURNACE 30,000 BTU
AIR CONDITIONER 13,500 BTU
LP TANK CAPACITY 2 x 20 LBS
REFRIGERATOR 8 Cu Ft110/LP
CONVERTOR 55 AMP
SHORE POWER 30 AMP
NUMBER OF SLIDES 1
MAIN SLIDE HEIGHT 5'-9-1/4"
BEDROOM HEIGHT 6'-8"
AWNING LENGTH 20'
COOK TOP 3 Burner
TRADITIONAL OVEN Yes
CONVECTION OVEN No

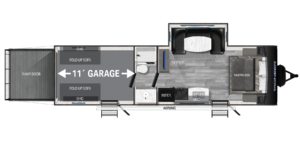

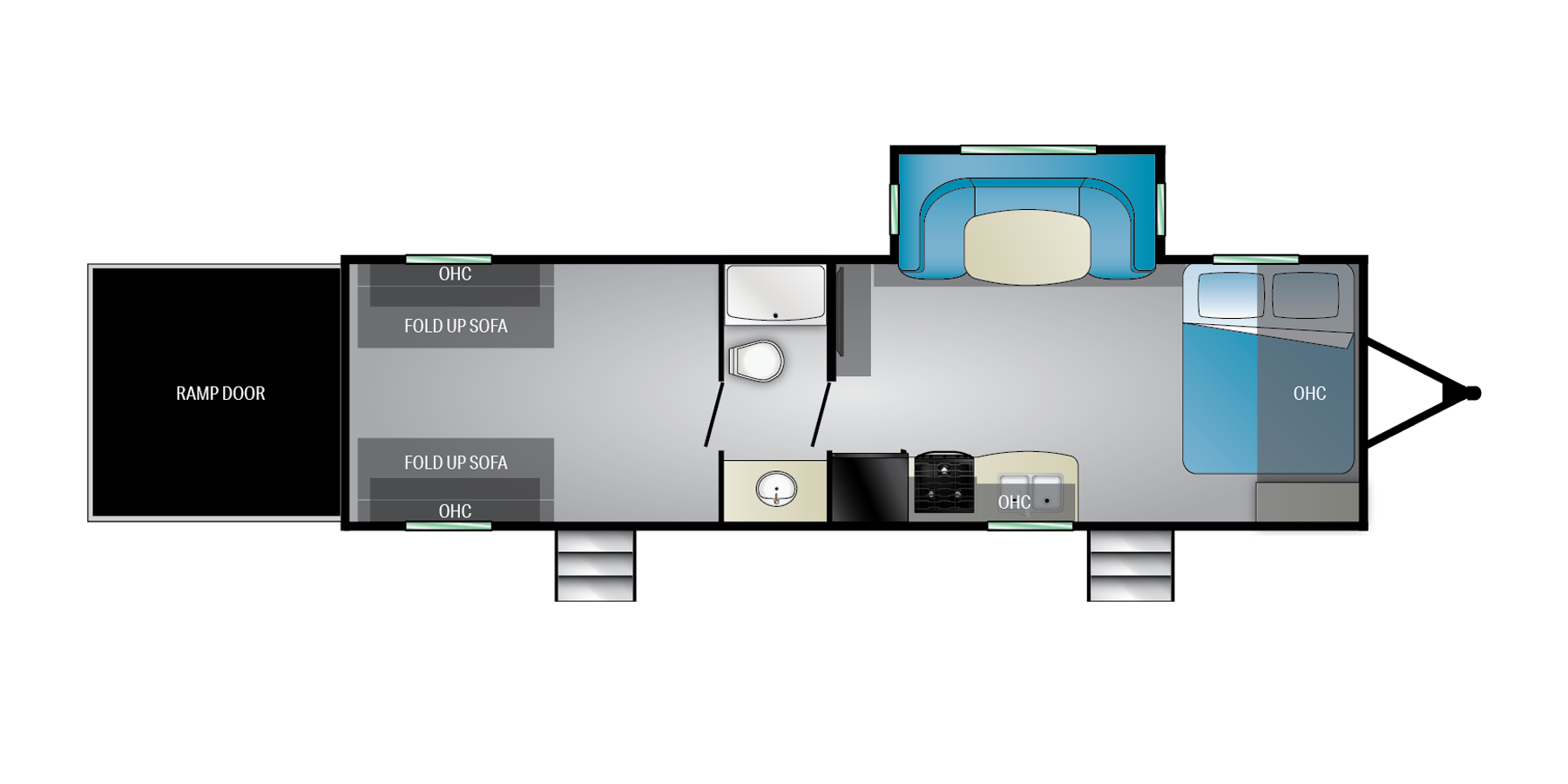

GARAGE LENGTH 10'-11"
BED SIZE Queen

Highlights

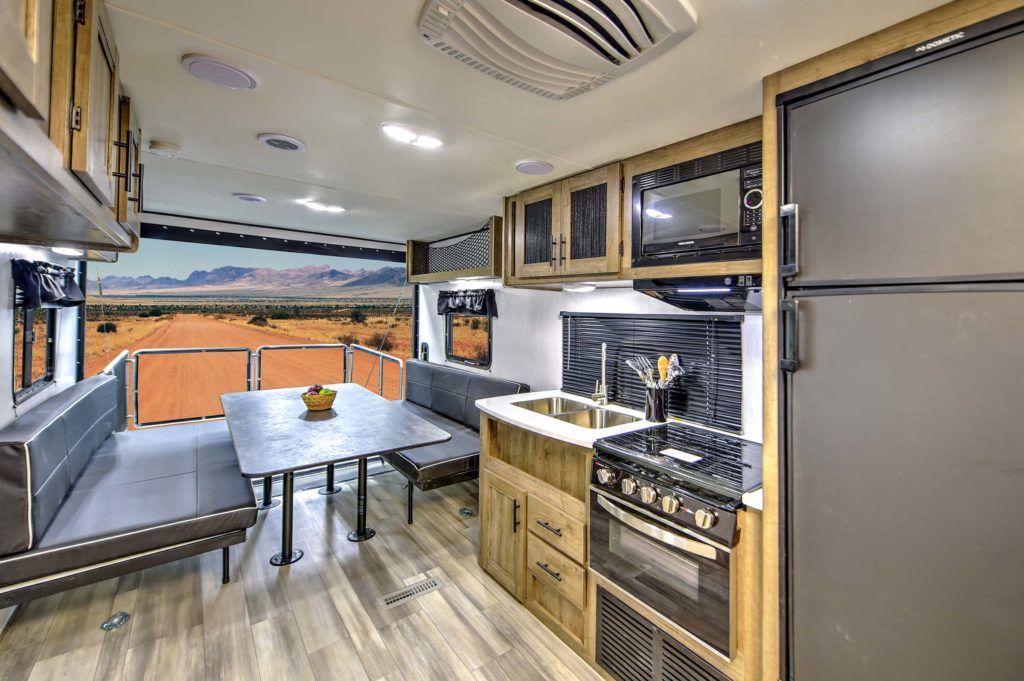

Ultimate Kitchen
Master Suite
Crossflow Windows
Refrigerator with Chalk Board

Features

Flip-Down Storage Rack – Store items like bikes, wood, coolers and more.

King Kong Pass-Thru Storage – 52 cubic feet of storage and LED lights.

Hybrid Aluminum Front Profile – Aerodynamic radius front cage structure for better wind and water deflection, adding strength and reduces tongue weight.

Pioneer Power Pack – Power stabilizer jacks, power tongue jack and power awning.

EZ Camp Package – Black tank flush, outside shower with hot and cold water, LP Quick connect, outside TV hookup and a flip down secure step with XL handle.

Radial tires with steel rims,  E-Z Lube axles, and Diamond plate stone guard

20# LP bottles with auto change over and easy access cover

Radius tinted safety glass windows

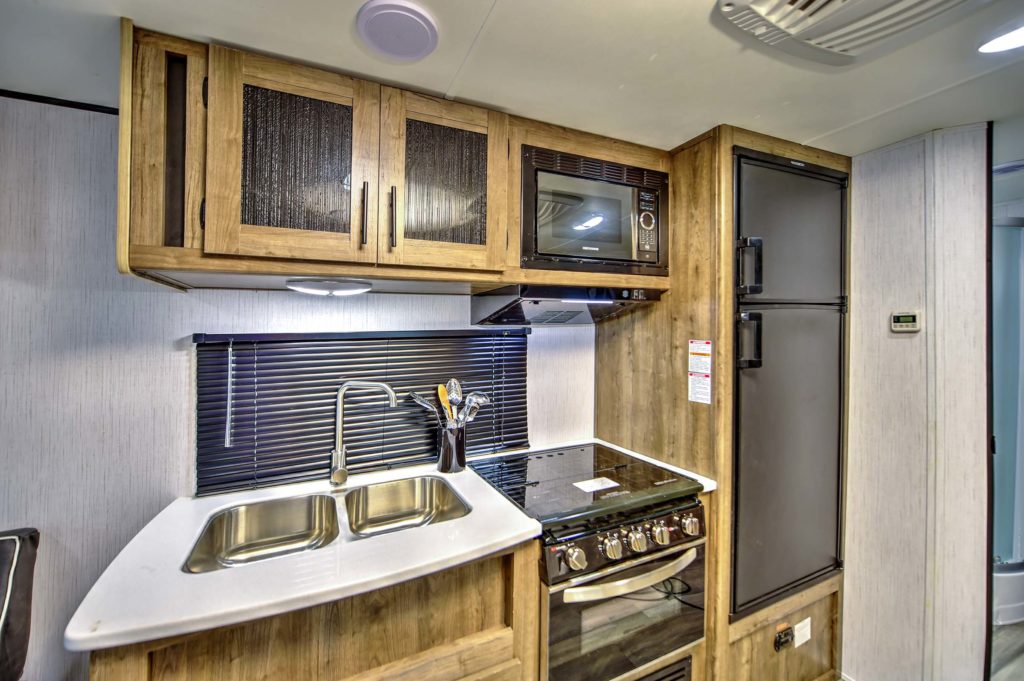

Ultimate Kitchen – Solid surface counter tops and large stainless steel sink with high rise faucets.

Carpet Free RV – Full linoleum on the main floor and no carpet in slide outs.

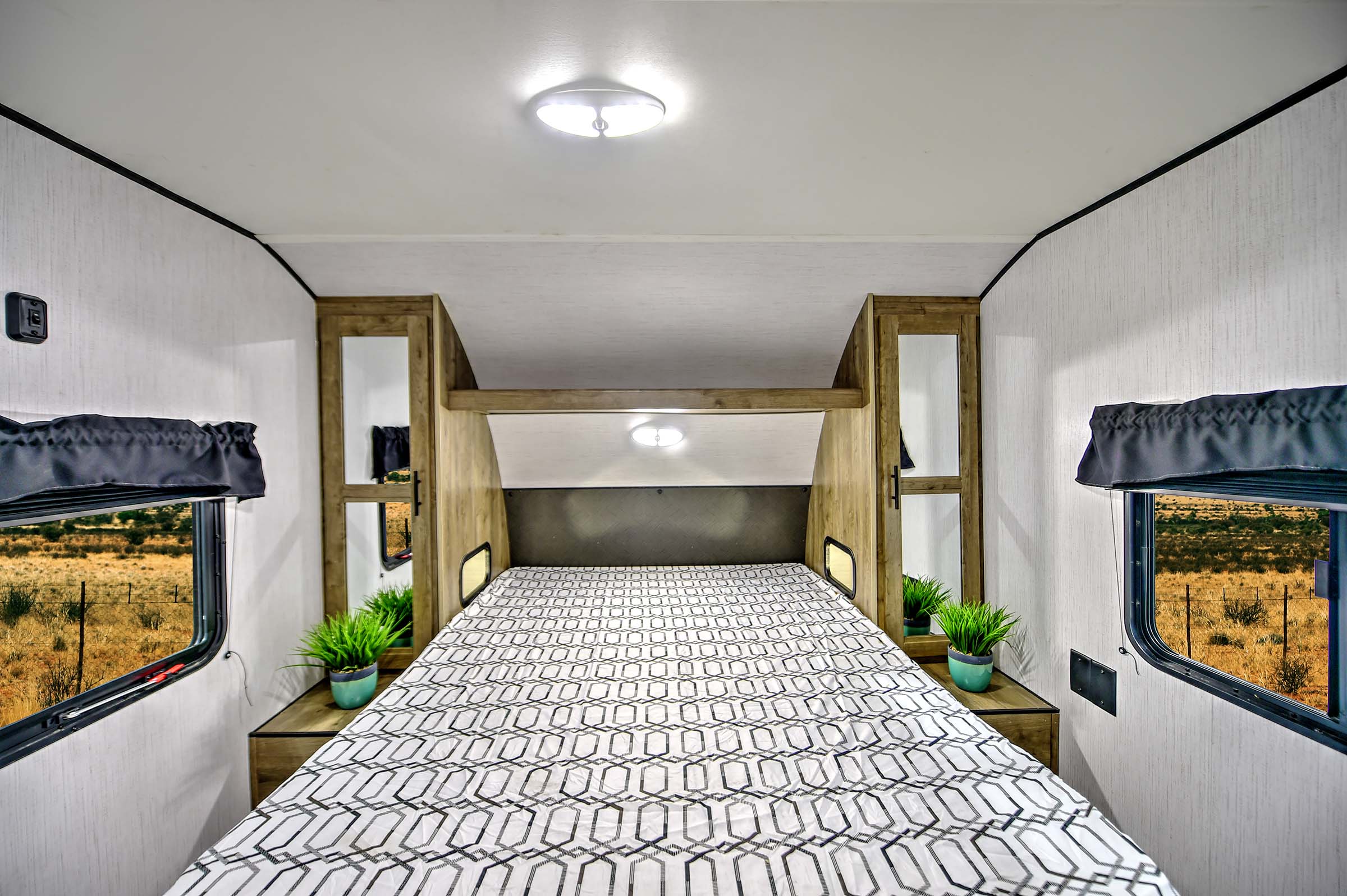

Pioneer Master Suite – Full size residential queen bed (60”x 80”), full length dual wardrobes with integrated lighting and USB charging, CPAP ready storage with full power access.

Crossflow Windows – Extra large windows that open allowing for cool fresh air.

“Expect More” Standards – 8 cubic feet gas/electric refrigerator with chalk board, front fireplaces (select floorplans),  and 50 amp service & second ac prep (select floorplans).

Convertible sleeper sofas

Cable TV hook-up with RG6 coax cabling

AM/FM/MP3/CD entertainment system with inside and outside speakers

TV antenna with signal booster

  • 5/8″ floor decking
  • Roof rafters wood tapered 4-1/2″ trusses
  • Aerodynamic radius front profile
  • Wall studs on 16″ centers
  • Electric-powered slide room
  • One-piece, fully walkable,  seamless rubber roof
  • 8″ exterior width
  • 80″ interior ceiling height
  • 2″ x 3″ longitudinal floor joists
  • Cambered structural steel I-beam frame
  • Finished pass-through storage
  • Hook-up for city water
  • Systems monitor panel
  • 12 Volt demand water pump
  • 13,500 BTU ducted A/C
  • 12 Volt electrical system with deluxe 110 Volt 45 Amp power converter
  • DSI hot water heater
  • Built-in 30 Amp power cord
  • 110 Volt GFCI protected exterior receptacle
  • Auto-ignition furnace with wall thermostat
  • In-floor ducted heat
  • Water system winterization kit
  • Water heater bypass
  • Bathroom power vent
  • Medicine cabinet with built-in shelf
  • Microwave oven with carousel
  • Ball bearing drawer guides
  • Residential style (50/50) sink
  • Three burner cook top
  • Range hood with light and exhaust fan
  • Double door refrigerator with freezer
  • Queen bed with innerspring mattress
  • TV hookups
  • Shirt wardrobe in bedroom
  • Electric outlets on both sides of the bed
  • Propane alarm
  • Break-away switch
  • Dead-bolt lock on entrance door
  • Dual hitch safety chains
  • Smoke alarm
  • Multiple egress windows
  • Fire extinguisher
  • Carbon monoxide alarm

Options

  • Spare tire and carrier
  • Manual stabilizer jacks two pair
  • Power stabilizer jacks two pair
  • Power tongue jack
  • Pull-out bike rack
  • Exterior shower
  • Electric awning with LED lights
  • Black tank flush
  • Heated and enclosed underbelly
  • Night shades in living area and bedroom
  • 15,000 BTU air conditioner in place of 13,500 BTU A/C

Interior Décor Manistee

The Look
