New Floor Plan
Bighorn 3120RK
msrp $87,285*
*Manufacturer's Suggested Retail Price (also referred to as "MSRP", "Base Price" or the "Starting At" price) excludes destination/delivery charges, taxes, title, license and registration fees, dealer fees and total of options fees. Check with your local dealer for pricing.
- TITLE 3120RK
- GVWR 16500
- DRY WEIGHT 11972
- HITCH WEIGHT 2141
- CARGO CAPACITY 4480
- WIDTH 8'-0"
- HEIGHT 13'-3"
- LENGTH 37'-6"
- SQFT 386
- SLEEP CAPACITY 3-4
- AXLES 2 x 7000
- FRESH TANK 80
- GREY TANK 90
- BLACK TANK 45
- WATER HEATER 12
- FURNACE 40,000 BTU
- AIR CONDITIONER 15,000 BTU
- AIR CONDITIONER2 15,000 BTU
- AIR CONDITIONER3
- LP TANK CAPACITY 2 x 30 LBS
- REFRIGERATOR 18 Cu Ft/110/LP
- CONVERTOR 80 AMP
- SHORE POWER 50 AMP
- NUMBER OF SLIDES 3
- MAIN SLIDE HEIGHT 7'-2-3/8"
- BEDROOM HEIGHT 6'-4"
- AWNING LENGTH 18'
- COOK TOP 3 Burner
- TRADITIONAL OVEN Yes
- CONVECTION OVEN Yes
- GARAGE LENGTH
- GENERATOR PREP Standard
- BED SIZE King
Features
-
Top 5 Exterior Features
- Patent pending Stor-Mor three-sided access to basement with 30% more capacity
- Azdel laminated sidewalls with lightweight non-wood substrate, sound barrier and better insulation value
- Wrapped and insulated residential style heating ductwork
- “Sure Shell” construction cage; 6-sided framework for the finished RV
- Oversized motorhome-based Euro style entry door latch
-
Additional Exterior Features
- High gloss sidewalls with upgraded vinyl graphics and logo badge on front cap
- Overhead entry door light
- MORryde strut assisted entry door with deeper top step at entry
- Automotive LED turn signals and lights
- Rear and side security camera prep
- Rear ladder
- 2˝ Accessory receiver
- Patent pending front cap design for short bed trucks allowing for tighter turning radius
- Large insulated slam latch baggage doors
- 110V exterior electrical receptacles
- Battery disconnect in main basement
- Universal docking station with all hookups, dump valves, flush, cable/sat, shower and winterization
-
Top 5 Interior Features
- Three separate kitchen surface workspaces for superior kitchen flow (most floor plans)
- 100% maple hardwood cabinetry and fascia in dynamic new black and tan two-tone package
- Spa baths with solid surface sinks, marble look shower, removable shower head and teak wood seat
- Cushioned woven flooring on slide out floors; anti-microbial and attractive
- In-house constructed vacuum-bonded laminated main and upper deck floors
-
Additional Interior Features
- All-in-one master control panel with DSI water heater switch, tank monitors, slide and light switches
- Day & night roller shades

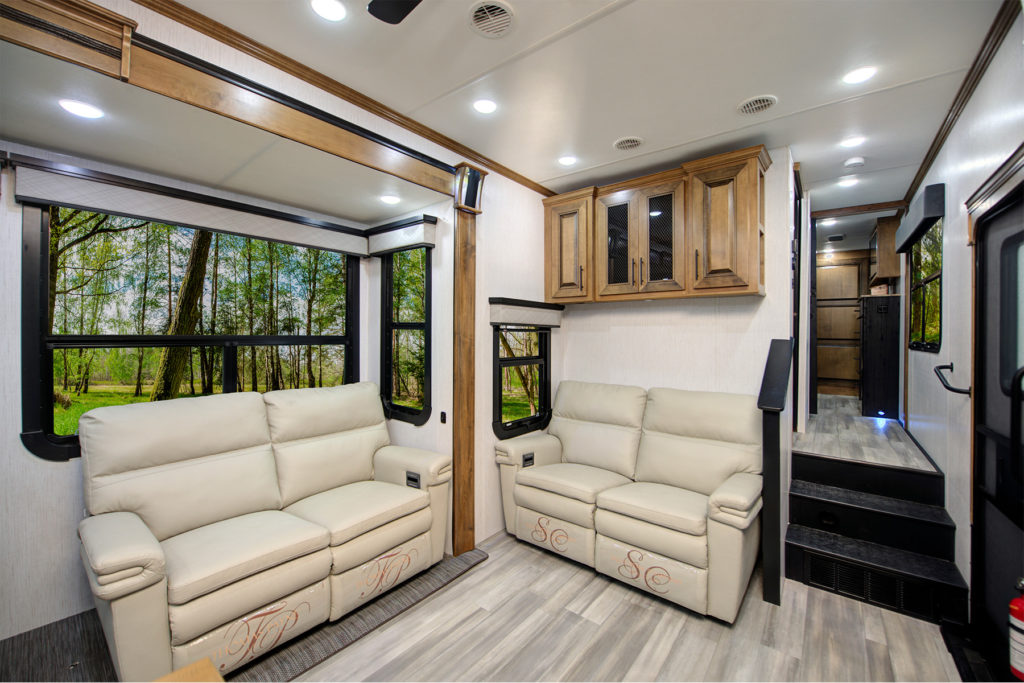

- Power theater seating with heat and massage

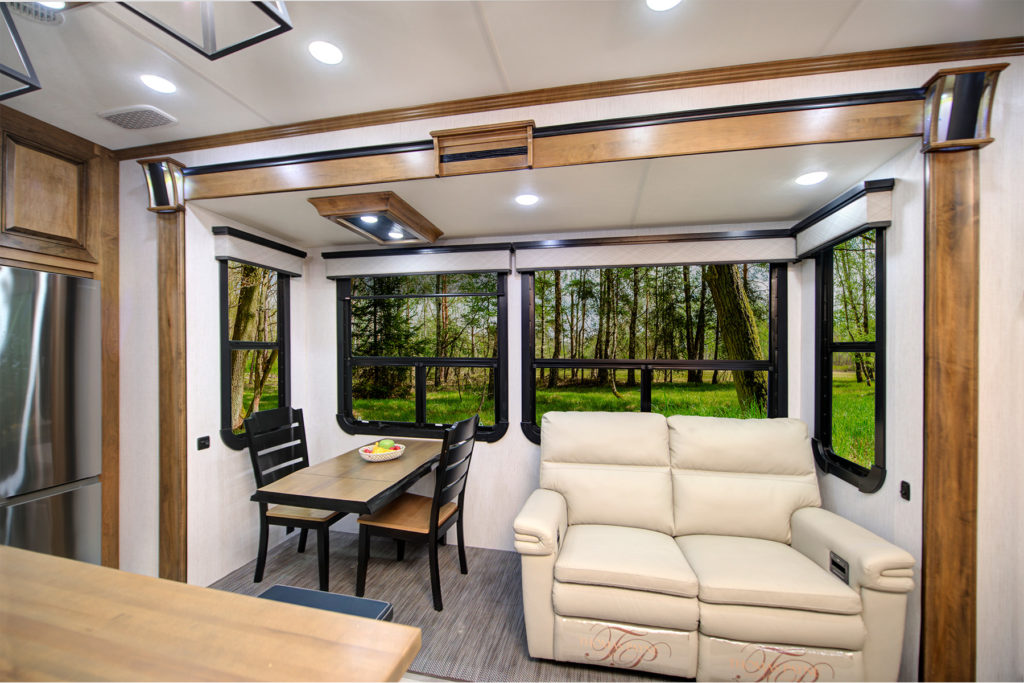

- Dual panoramic windows in main slide
- Whisper quiet A/C system – includes dual high output 15,000 BTU A/C units (3rd AC option)
- Upgrade flip & fold sleeper sofa
- Vinyl flooring on all main floors (no carpet) and woven flooring on slide floors

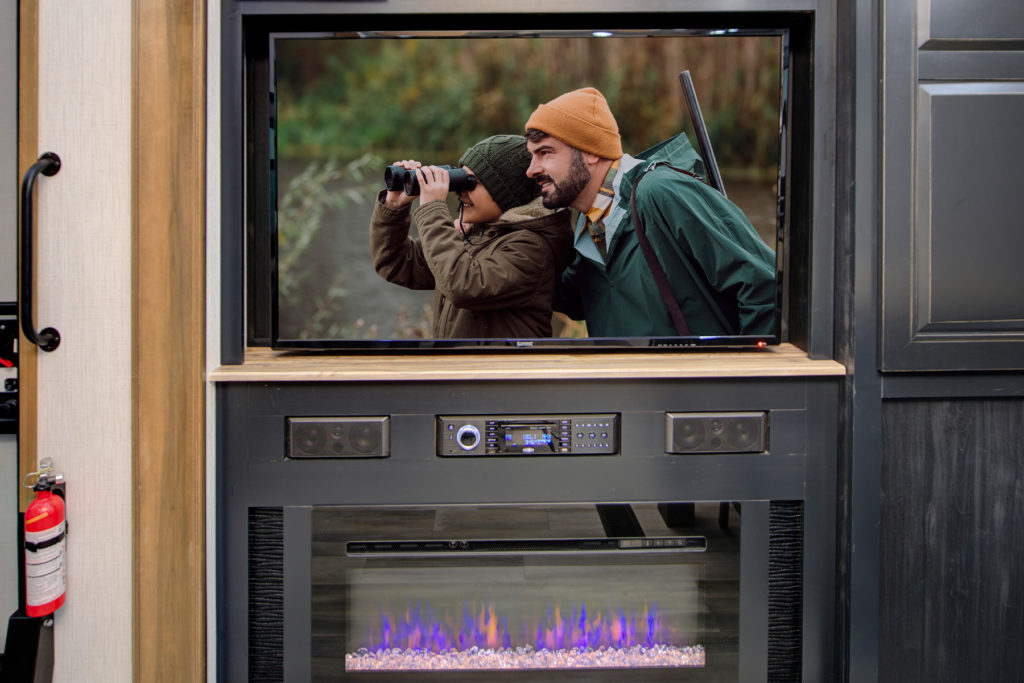

- 55˝ LED living room television
- Pre-wired for satellite system, and wi-fi internet
- Residential style stereo with DVD Player, radio and Bluetooth capability
-
Construction Standard Features
- In-house constructed laminated fiberglass sidewalls
- Double-welded aircraft quality aluminum superstructure cage construction
- Drip rail with down spouts
- In-house constructed 3’’ vacuum bonded laminated main and upper deck floors
- Deluxe power exterior awning with LED light strip
- Walkable roof decking with wood roof trusses 16’’ on center or less
- Radius metal cap at roof/sidewall transition
- Strong 12˝ I-beam frame with rust prohibitive coating
- Seamless corrugated underbelly material
- Heated and enclosed underbelly
- Heated and Insulated holding tanks & gate valves
- 6-point hydraulic landing gear and auto leveling system
- Color-coded Plumb-PLEX™ water lines with 10/25 year warranty
- 12 gallon water heater (gas/electric DSI)
- Flexfoil insulation (R-14)
-
TIRES & AXLES STANDARD FEATURES
- Upgraded Rubberized Suspension with 3″ vertical travel
- 7,000 lb. industry leading axle with Easy-Lube™ hubs (all models)
- 2˝ x 12˝ Nev-R-Adjust brakes
- 16’’ G-range tires, G-range spare tire mounted on easy access pull-out bracket
-
TOTAL INSULATION VALUES
- Walls – R11 *All formaldehyde-free insulation
- Roof – R38
- Slide room floors – radiant insulation R38 equivalent
- Main floor – R38
- Upper deck floor – R14
-

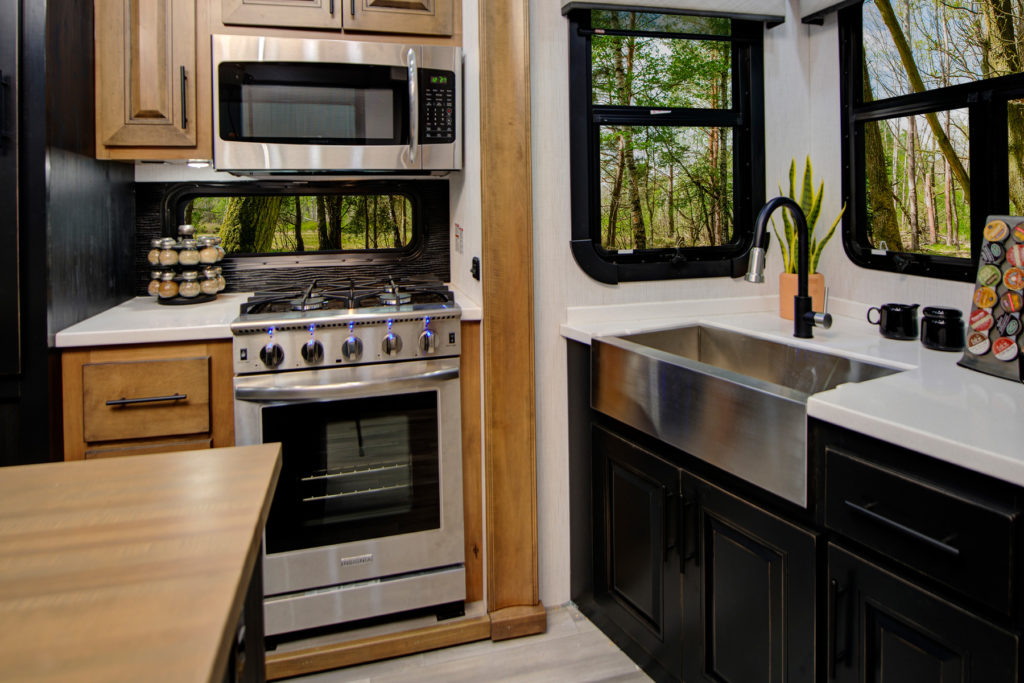

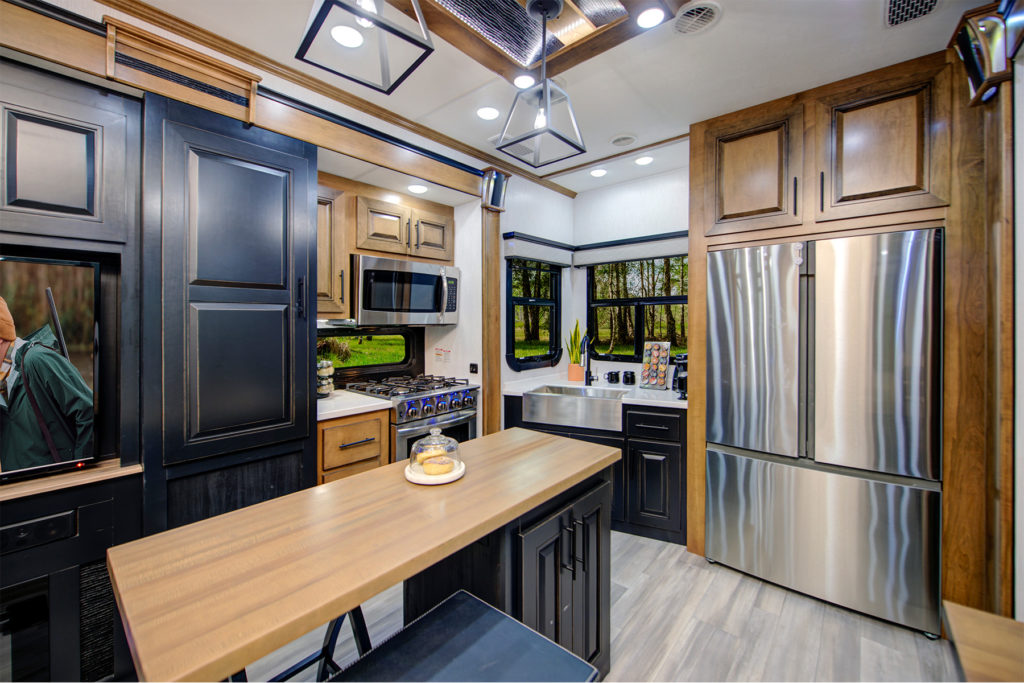

KITCHEN STANDARD FEATURES
- 2-tone “Black and Tan” maple material
- Amish -crafted 100% hardwood cabinetry, fascia and doors with hidden hinges and drawers
- Baltic birch drawer construction with ball-bearing drawer guides
- 3-burner gas cook top with oversized oven
- 30˝ microwave oven over the range
- In-house milled and finished solid surface countertops throughout
- Residential size, stainless steel kitchen sink with matching solid surface sink covers
- 20˝ deep residential size kitchen drawers

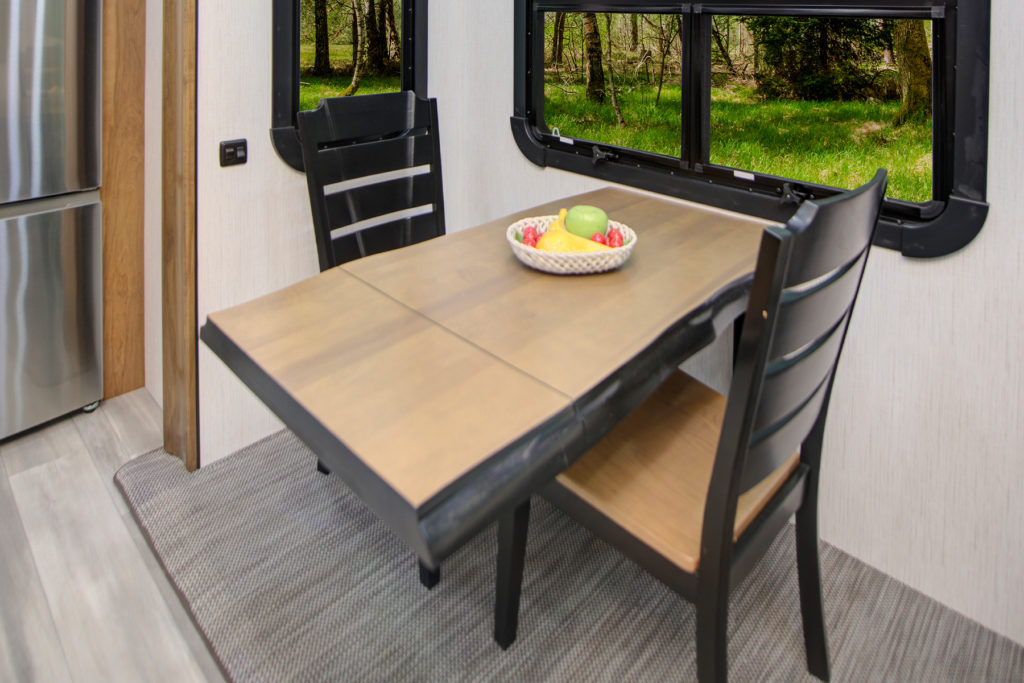

- Live edge dinette table with 2 standard and 2 folding chairs
- Single basin stainless steel kitchen sink with front apron
-

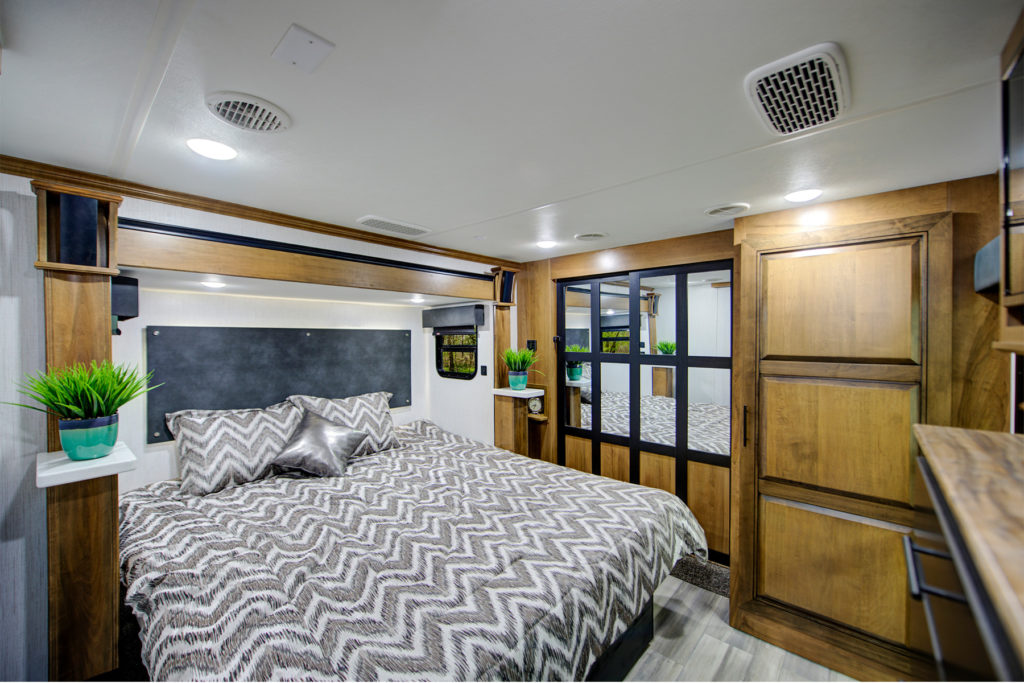

BEDROOM STANDARD FEATURES
- Built-In closet system featuring hanging clothes rods, recessed shelving
- Standard king size bed
- Two windows in slide for better air flow
- 6´4˝ bedroom upper deck ceiling height
- Dual switched LED reading lights over bed
- Backlit headboard
- Clean, paneled under bed storage
- 32’’ LED bedroom television
-

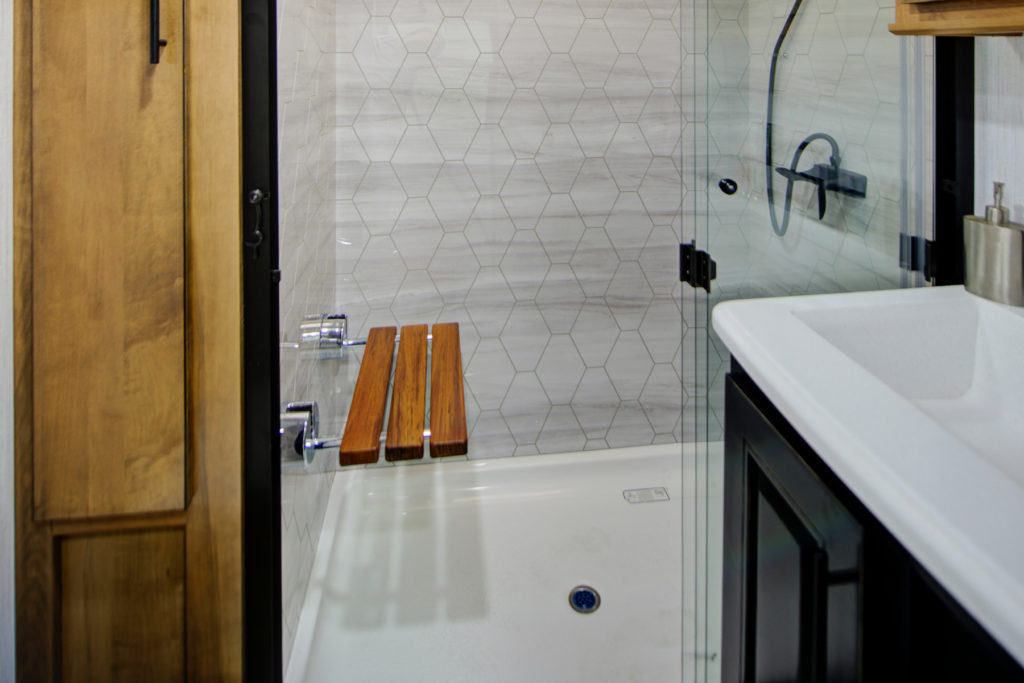

BATH STANDARD FEATURES
- 6´4˝ ceiling height
- Porcelain toilet with foot flush
- Glass shower door with towel bar
- Foldable teak wood seat in shower
Options
-
Excursion Package
- Fiberglass Rear Cap
- Power Cord Reel
- Power Tilt King Bed
- MORryde Rubber Pin Box
- YETI Cold Weather Package
-
INTERIOR OPTIONAL FEATURES
- Gas/Electric “RV Refrigerator with stainless steel appliances
- Heat pump main A/C
- Heat pump 2nd A/C
- 3rd 15,000 A/C with power management
- Cordless Vacuum
- Stackable washer/dryer hook up
-
EXTERIOR OPTIONAL FEATURES
- Full body paint (3 color scheme options)
- Dual pane frameless windows
- Slide out topper awnings
- Generator prep
- 5.5 kw generator (ask dealer)
- Power awning over main dinette
- 300W solar panel with 30 amp controller and 2000W inverter
- Power cord reel
